air jet sieve machine e200 LS by NEXOPART

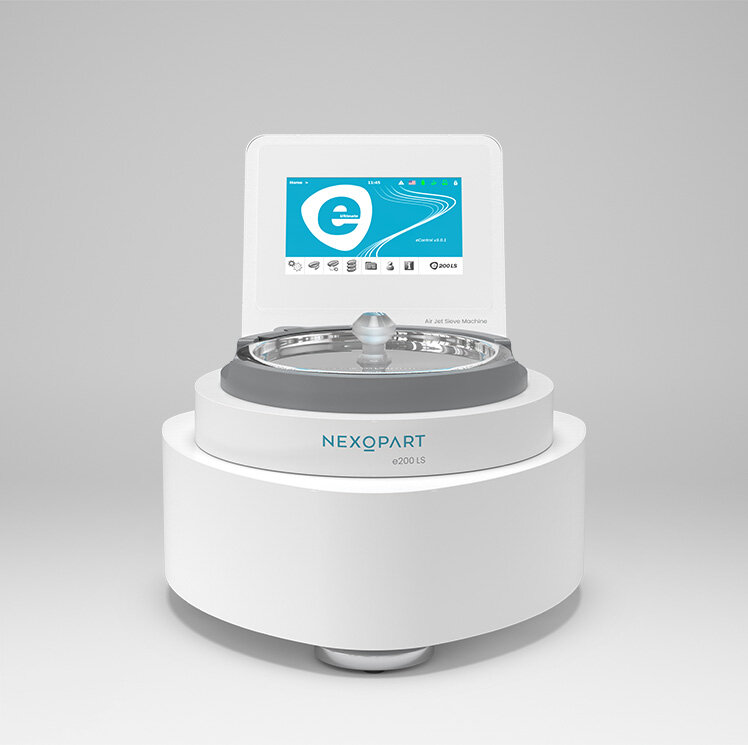

Air Jet Sieve Machine e200 LS - An air jet with plenty of power


The NEXOPART e200 LS air jet sieve machine supports you reliably when it comes to separating fine powders. Find out how the quiet, fast and efficient device helps to prevent the agglomeration of powders and clogging of the test sieve. Discover the right software version for your application.

By the way: NEXOPART products will be available in the new design from the end of 2024.

Air Jet Sieve Machine: Two-components for a perfect analysis results.


A slotted nozzle rotating inside the sieving chamber of the air jet sieve e200 LS and an industrial vacuum cleaner connected to the sieving chamber work together in perfect harmony. While the vacuum cleaner creates a vacuum inside the sieving chamber, the extremely narrow slot of the slotted nozzle accelerates mass of air entering from below through the sieve mesh. The effect: Fine particles are separated quickly and effectively.

Take a look at our e-shop

NEXOPART e200 LS: Powerful software for simple operation.


The NEXOPART air jet sieve machine e200 LS is a test sieve machine that is equipped with integrated software. Its user-friendly and simple operation are impressive via a touch display and its reliable analysis results. You can choose from 12 languages and manage your users in the system. More diversity is not possible.

Learn more here

Sieve analysis with sample weights of up to 30 g
Upgradeable at any time
Simple and quick operability

Application areas of the air jet sieve


The e200 LS air jet sieve machine is ideal for separating, fractionating and particle size analysis of powders in various industries:

  • Minerals
  • Chemicals production
  • Pharmaceuticals – through compliance with 21 CFR Part 11
  • Toner production
  • Food and nutrition industry
  • Cement and construction material applications

Find out how and for what you can use the air jet sieve correctly

The right software package for your application.


eControl – You have the option to choose from our selection of four software packages the right one for you and your everyday laboratory work:

Each software package for the e200 LS air jet sieve stands out with its unique functional features, but the best part is: You can replace any package with the next higher upgrade at any time.

LITE

L


  • Integration of an external suction device
  • Fast analysis
  • Simple one-touch operation
  • Graphic user interface
  • Display of the underpressure (in Pa), sieving time, date and time
  • Manual underpressure control
    (comparable to the A200 LS)

BASIC

L


  • Automatic underpressure control
  • Fast, simple evaluation of the results (in table form)
  • Balance communication via RS-232 interface
  • Central parameter management of all sieves (comparable to 200 LS-N)

ULTIMATE

L


Includes features of the BASIC version, plus:

  • Automatic saving and printing
  • Sieve set management (SOP)
  • Result evaluation against setpoint specifications (table and graph form)
  • Automatic backup
  • Individualized level of detail
  • Various chart types
  • Parameter management for each test sieve

SECURITY

L


Includes features of the ULTIMATE version, plus:

  • Requirements for software validation as classified in ISPE GAMP 5, FDA 21 Part 11, compliant with EC GMP Annex 11
  • User management
  • Password management
  • Audit trail – user activity monitoring and event logging
  • E-signature
  • Network connection required



Whitepaper: Your precise sieve analysis for reproducible results.


Do you want accurate and reproducible results? Then find out here what is important for a correctly performed sieve analysis.

Request your free whitepaper here

Whitepaper: Precise sieve analysis for reproducible results – NEXOPART

Accessories for NEXOPART e200 LS

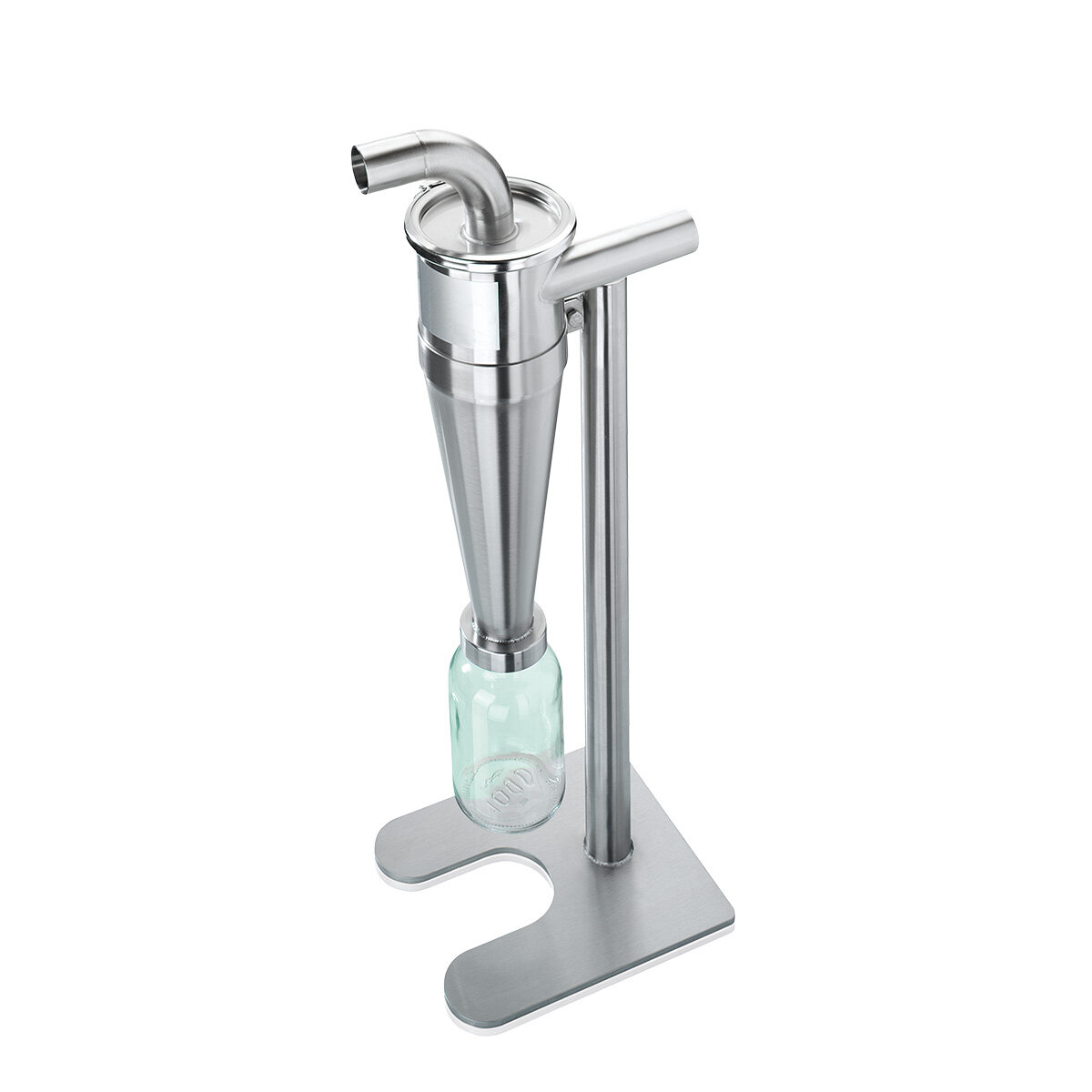

NEXOPART high-performance cyclone GAZ 120

To the product

EVO industrial vacuum cleaner FEX 1000

To the product

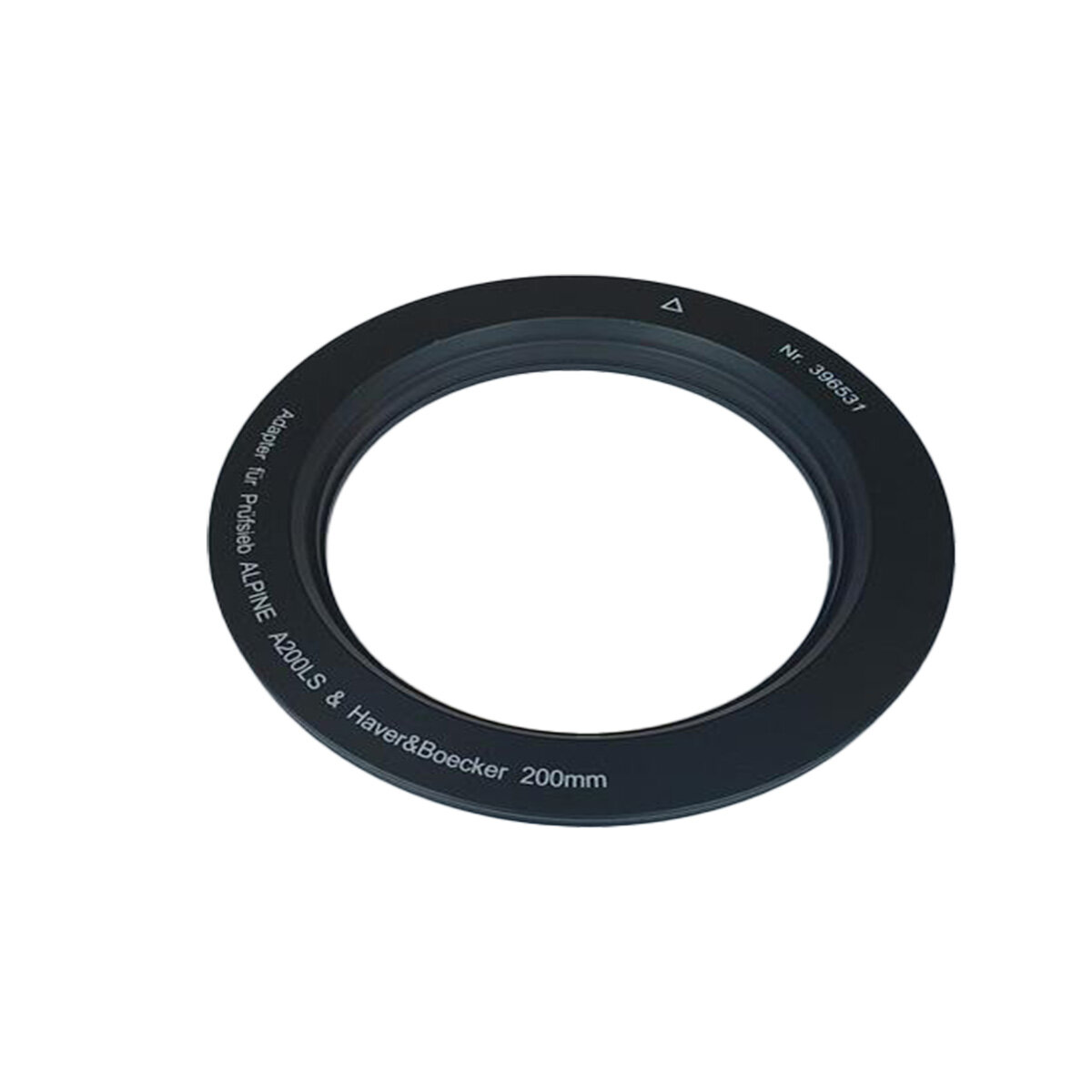

Adapter for test sieves Ø 200 mm "Alpine A200 LS" / "Haver & Boecker" / "Nexopart"

To the product

FAQ about sieve analysis and air jet sieve machines

What is an air jet sieve machine?

L


Air jet sieve machines are used to determine the particle size distribution of powdery materials. In contrast to conventional sieving machines, the particles are moved through the sieve using a targeted air flow. Modern models (such as the e200 LS air jet sieve machines) allow convenient user guidance and automated processes, such as regulating the vacuum or saving the results, via an integrated software.

What are the advantages of air jet sieve machines?

L


As an air jet is used to move the particles and deagglomerate them, very accurate and reproducible results can be achieved with a sieve analysis. In addition, sieve machines with air jet technology are considered to be particularly efficient, as the air flow allows the particles to be separated evenly and quickly. The gentle process is also suitable for sensitive samples, as the particles are moved by the air jet and are not subjected to mechanical stress - for example by a vibrating or shaking sieve. Another advantage is its versatility: whether coarse particles or very fine powders - air jet sieve machines can be used to analyze a wide variety of particle sizes and materials.

How much sample weight can be analyzed with the e200 LS air jet sieve machine

L


The NEXOPART e200 LS air jet sieve machine is suitable for sieving applications up to 30 grams.

You may also be interested in

The NEXOPART EML Series

Learn more

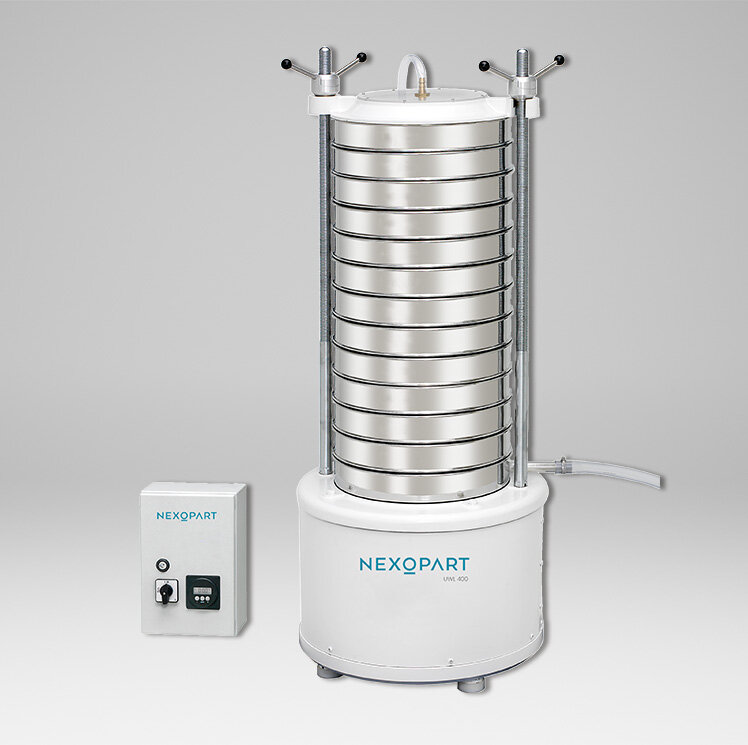

The NEXOPART UWL
